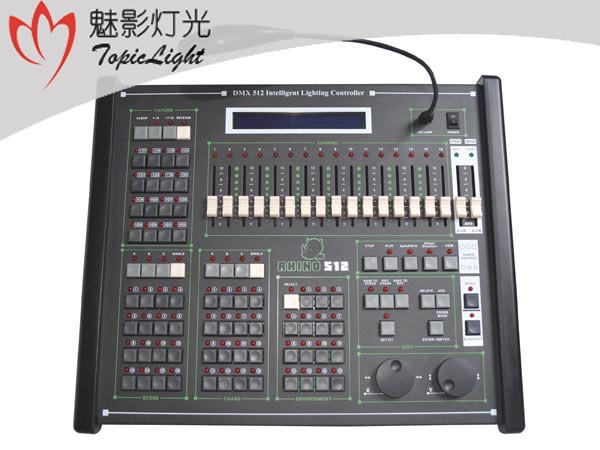

DMX512 console Rhino 512 Console 1325

Technical Feature

• DMX 512/1990 Standard, 512 DMX control channels
• 4 output with optical isolated , with stand 2000 Vrmms
• Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc
• Up to 32 scanners may be connected with a maximum of 16 channels each
• A large backlight LCD to display operation parameters
• 16 sliders for channel, 1 slider for speed/fade control
• 1600 chase steps, 48 chases, up to 99 steps each. Each step contains its speed and cross time, can be set respectively. Trigger mode selectable: Music synchronously and manual speed
• SPEED fade time range is 0.01s-25.5s and CROSS fade time range is 0s-25.5s and the total time amount of current status will be program step time
• 48 scanner scenes can be used directly
• 8 chases, 48 scenes operated at the same time. At most 32 scanners can be selected
• The X/Y channels of different scanners can be controlled by modulation wheel
• 16Bit control for absolutely precise movement
• 15 environment programsto output the combination , which are composed of different scenes , chases and manual output quickly
• The music trigger source can be selected between audio line input or inside microphone
• Easy to edit and handle
• The Data auto-saves
• High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country simultaneously
• LED lamp connector
• Free-lead solder
• Power input: DC9V 1000mA
• Dimension: 498mm × 420mm × 115mm
• Net Weight: 6.3kg
